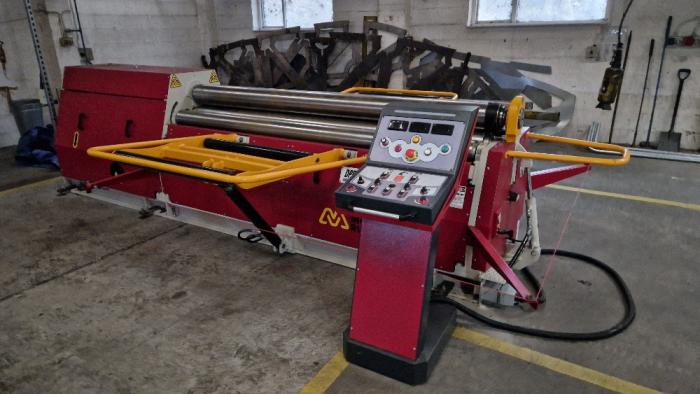

Morgan Rushworth DPBR-4 / 2550 / 180
Bending Rolls
Machine Summary
Machine Ref: 1270
Manufacturer: Morgan Rushworth
Model: DPBR-4 / 2550 / 180
Description: Hydraulic Bending Rolls - Year 2023 - UN-USED !!!
Electrics: 3
Year: 2023
Price: £24950.00
Equipment and Features
UN-USED
Powered Top & Bottom Rolls with Hydro Motor& Cardan Joint
Hydraulic Drop End
Hydraulic Up & Down Roll Movement
Hydraulic Pinching
Induction Hardened Rolls
Digital Read Out for both Side Rollers & Pinch Roll
Double Pre Bending to Front & Rear Edge of Plate
Cone Bending Device
Welded Steel Construction
Safety Trip Wire around the Machine
Mobile Control Panel
Two Rolling Speeds
Central Lubrication System
Side & Central Sheet Supports
Ground & Polished Rolls
Variable Speed
NC Controller
Machine Specification
Bending Length: 2550mm
Rolling Capacity: ( 5 x Top Roll ) 6mm
Pre Bending Capacity: ( 5 x Top Roll ) 4mm
Rolling Capacity: ( 1.5 x Top Roll ) 4mm
Pre Bending Capacity: ( 1.5 x Top Roll ) 3mm
Top Roll Diameter: 180mm
Working Speed: 1.5 / 6 m/minute
Motor: 5.5 Kw
Overall Length: 4900mm
Width: 1100mm
Height: 1250mm
Weight: 3900 Kgs
** WHEN NEW THESE MACHINES ARE PRICED OVER £50K ) UN-USED
ALL PRICES PLUS VAT
